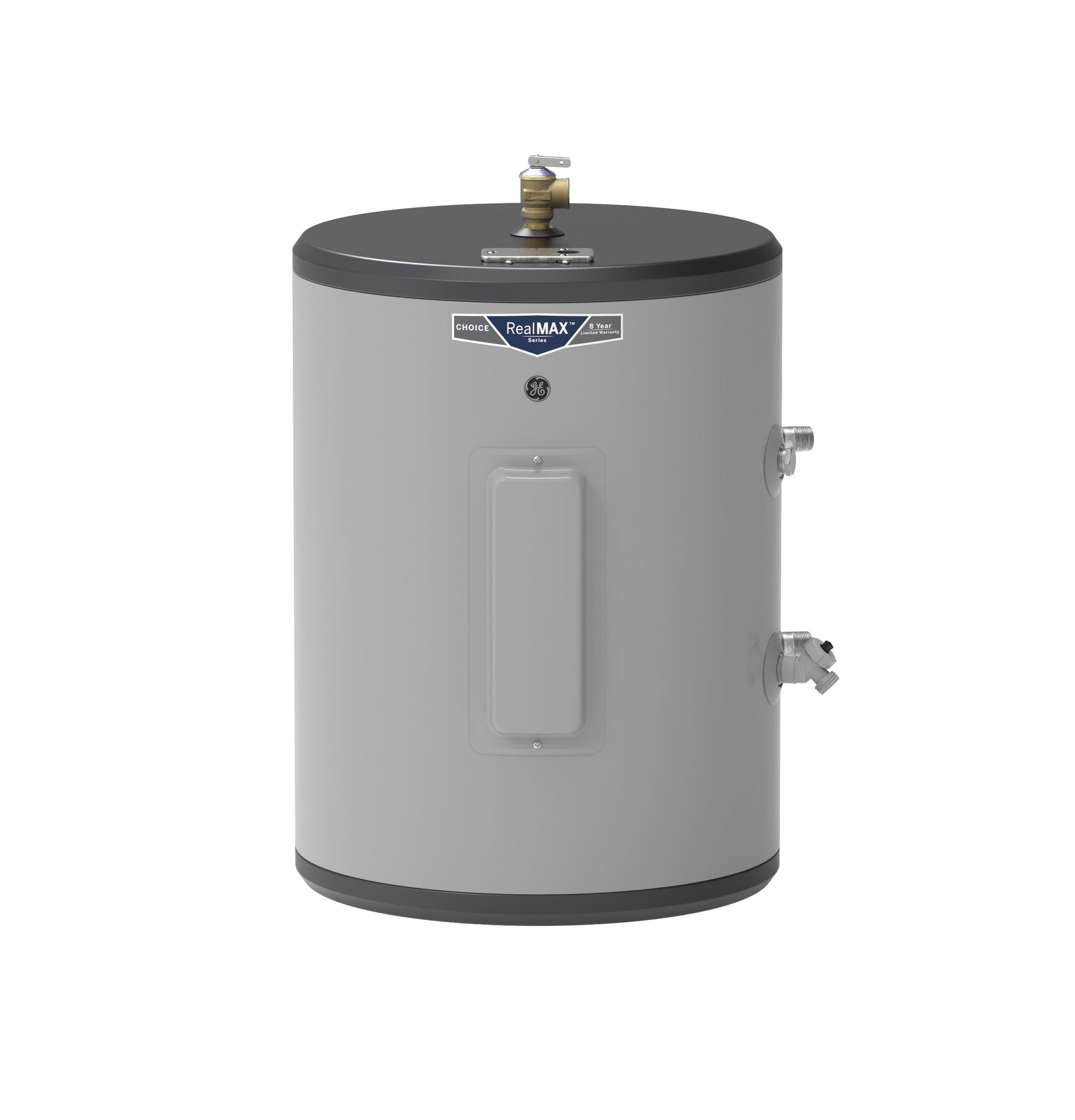

GE® 18 Gallon Side Port Lowboy Electric Water Heater

$369.00 USD

Sale Sold out

Title GE® 18 Gallon Side Port Lowboy Electric Water Heater

FEATURES
Control Type	Thermostat
Controls	Mechanical Temperature Control
Max. operating pressure (psi)	150
Temp & Pressure Relief Valve	Yes
Rated Capacity	18
Height Description	Low Boy with Side Port
Heating Element	Stainless steel
Max: operating pressure (psi)	150
Fuel Type	Electric
Configuration	Lowboy
Installation Location	Indoor
Operating Modes	Standard Electric
Rated Storage Capacity	18
Drain Valve Type	Plastic
GPH Recovery @ 90 Degrees F	25.1
Mobile Home Compatible	No
Temperature Setting Factory Default	120Â° F
Product Type	Electric Thermostat
Family Size	1-2 People
Water Connection Location	Side
Foam Insulation	Yes
Point of Use	No
Anode Rod	Aluminum
Temperature Setting	90-150Â° F Range

APPEARANCE
Color Appearance	Gray

WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	8-year limited
Labor Warranty	1-year limited

POWER / RATINGS
Heating - Electric - Heater Watts	3800
Electrical Connection	Direct-Wire
Operating Water Pressure	20-125 PSI
Volts/Hertz	240V; 60Hz
Voltage (MAX)	240
Electrical Circuit Required	208V/240V 60 Hz Dedicated 30 Amp Min.

WEIGHTS & DIMENSIONS
Product Height (to top of water inlet/outlet connections)	26
Approximate Shipping Weight	62
Overall Width	19.250000
Overall Height	25.750000
Product Height (to top of unit)	25.75
Net Weight	54.2
Product Diameter	19.25
Overall Depth	19.250000
Connection Sizes - Water Inlet (MNPT)	3/4"
Connection Sizes - Hot Water Outlet (MNPT)	3/4"

CAPACITY
Unit Capacity	18 Gallons
