FEATURES |
|---|
| Control Type | Thermostat |
| Temp & Pressure Relief Valve | Yes |
| Rated Capacity | 26 |
| Height Description | Low Boy with Side Port |
| Fuel Type | Electric |
| Configuration | Lowboy |
| Installation Location | Indoor |
| Operating Modes | Standard Electric |
| Rated Storage Capacity | 26 |

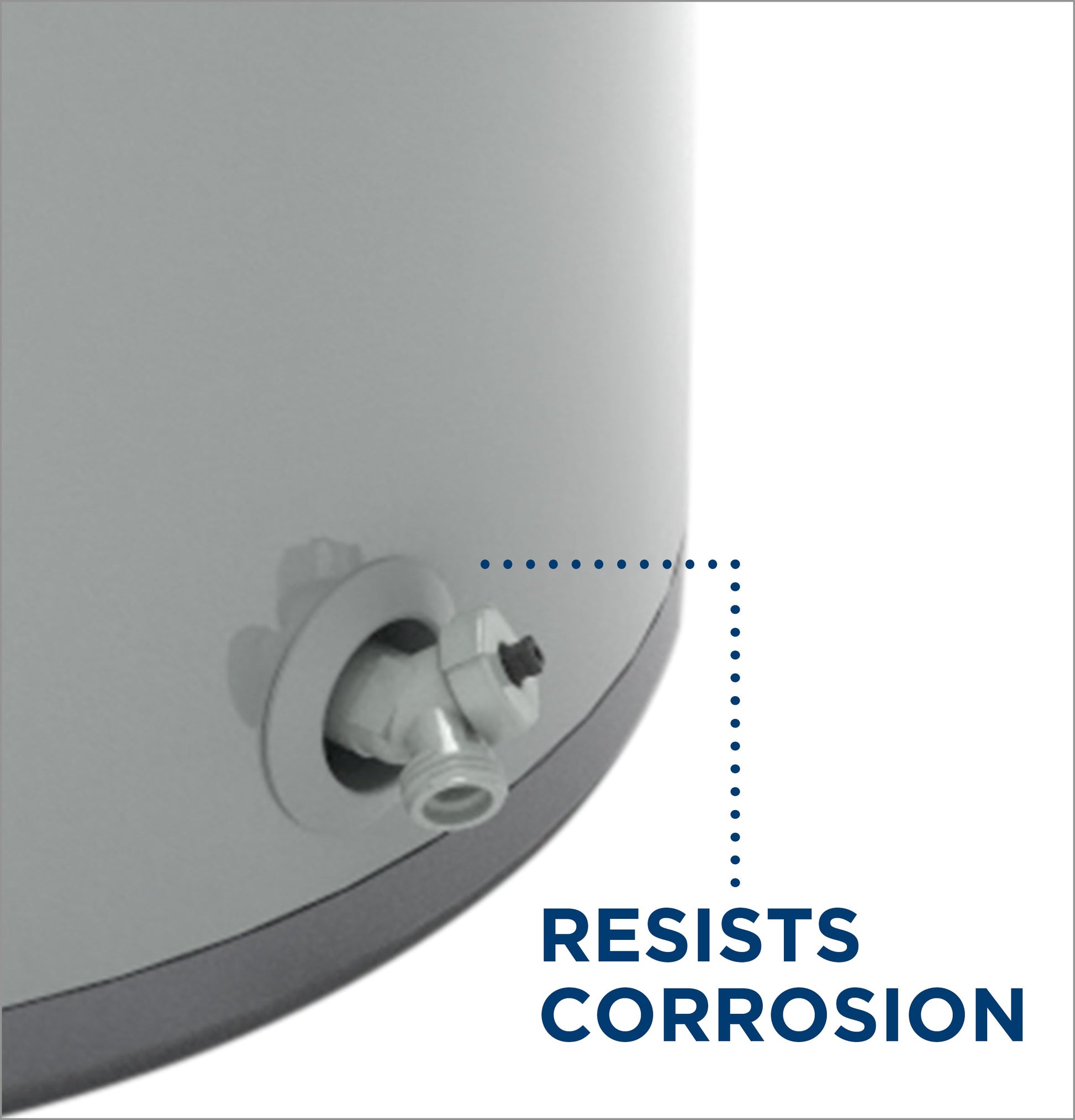

| Drain Valve Type | Plastic |
| GPH Recovery @ 90 Degrees F | 25.1 |
| Mobile Home Compatible | No |
| Temperature Setting Factory Default | 120° F |
| Product Type | Electric Thermostat |
| Family Size | 1-3 People |
| Water Connection Location | Side |
| Foam Insulation | Yes |
| Point of Use | No |

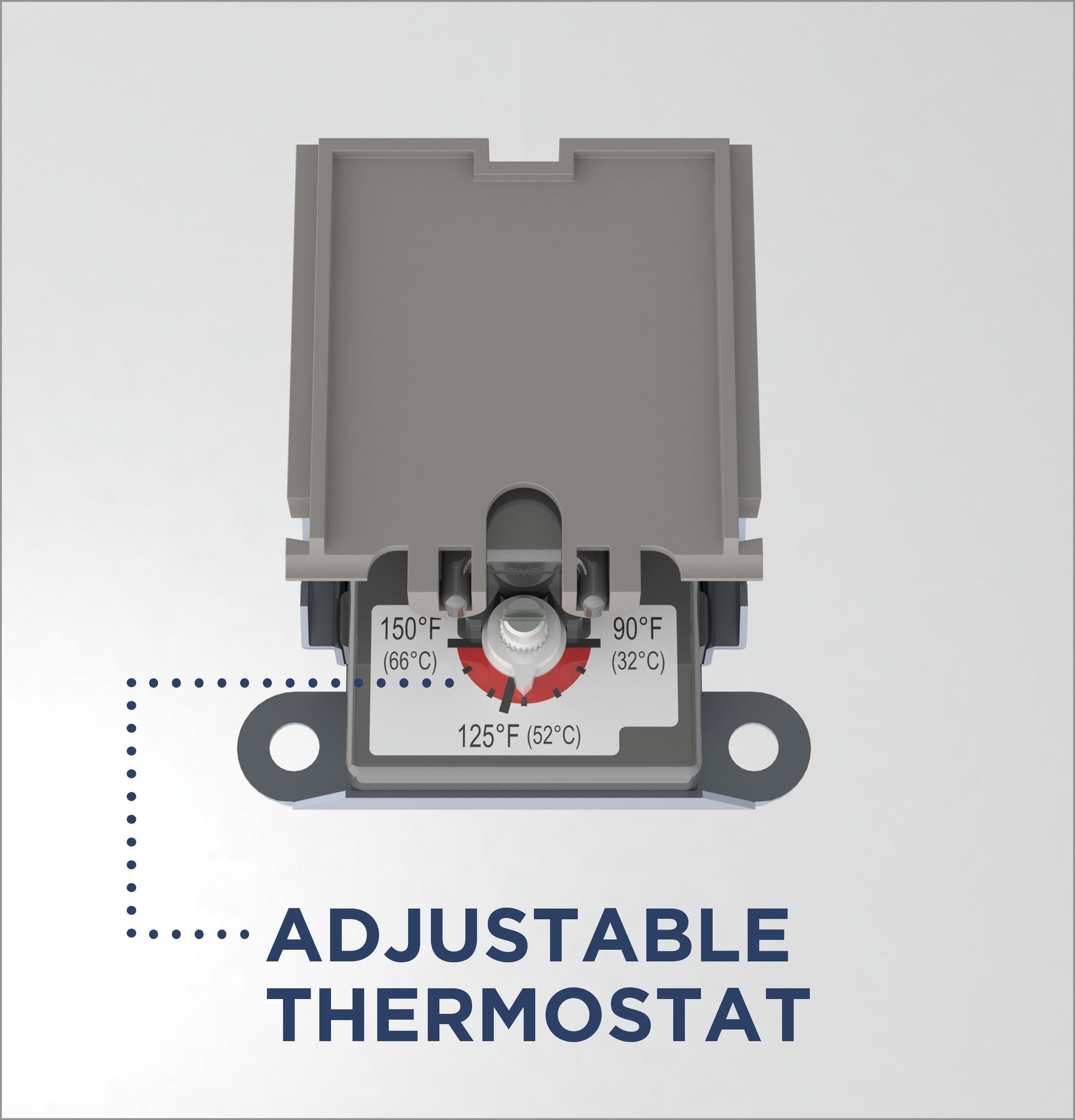

| Temperature Setting | 90-150° F Range |
| Insulation Thickness | 2.75 |
APPEARANCE |
|---|
| Color Appearance | Gray |
WARRANTY |
|---|
| Warranty Notes | See written warranty for full details |
| Parts Warranty | 8-year limited |
| Labor Warranty | 1-year limited |
POWER / RATINGS |
|---|
| Integrated Energy Factor | 0.93 |

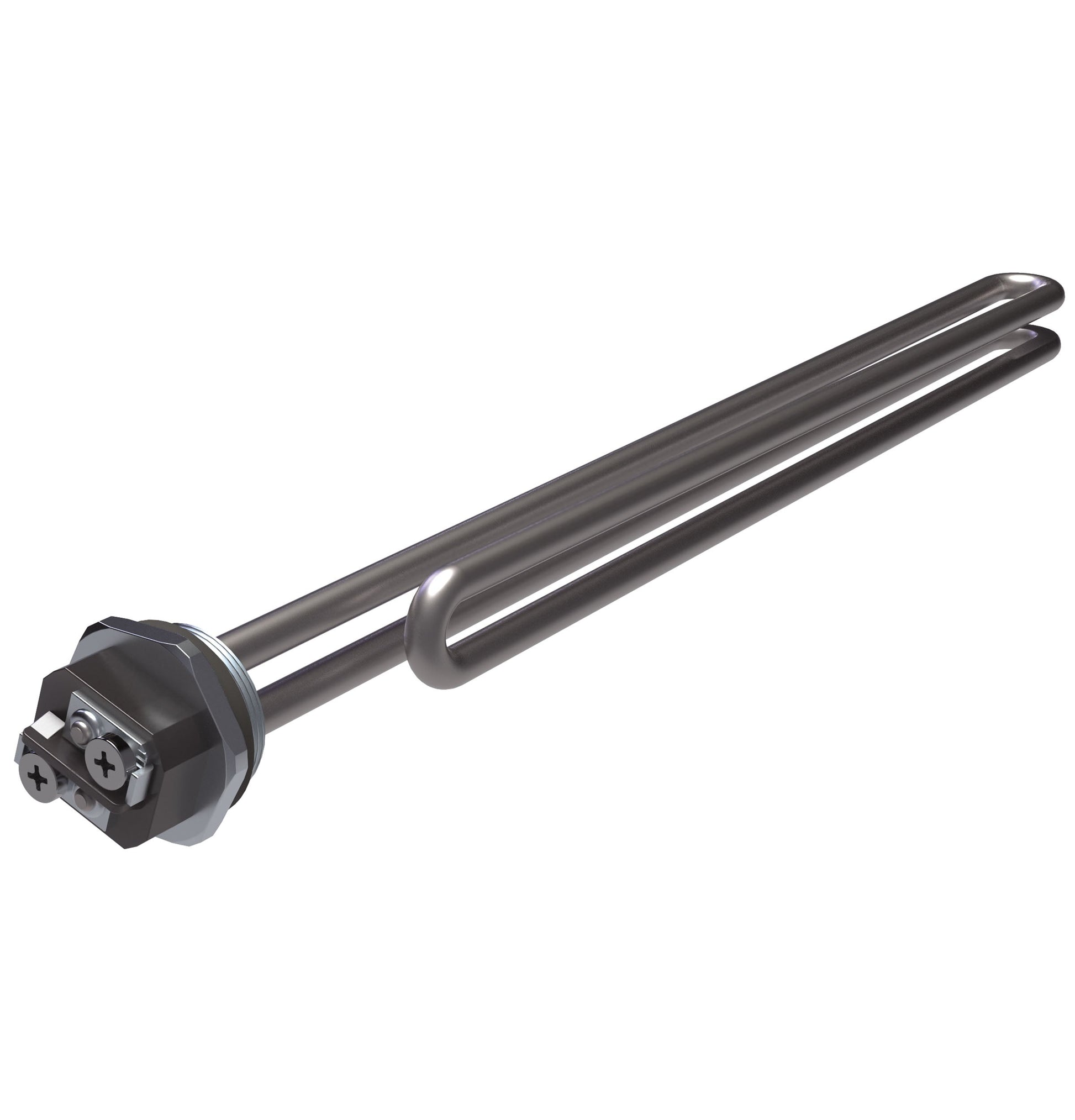

| Heating - Electric - Heater Watts | 5500/5500 |
| Electrical Connection | Direct-Wire |
| Operating Water Pressure | 20-125 PSI |
| Volts/Hertz | 240V; 60Hz |
| First Hour Rate (FHR) | 58 Gallons |
| Voltage (MAX) | 240 |
| Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
WEIGHTS & DIMENSIONS |
|---|
| Product Height (to top of water inlet/outlet connections) | 24.875 |
| Approximate Shipping Weight | 114 |

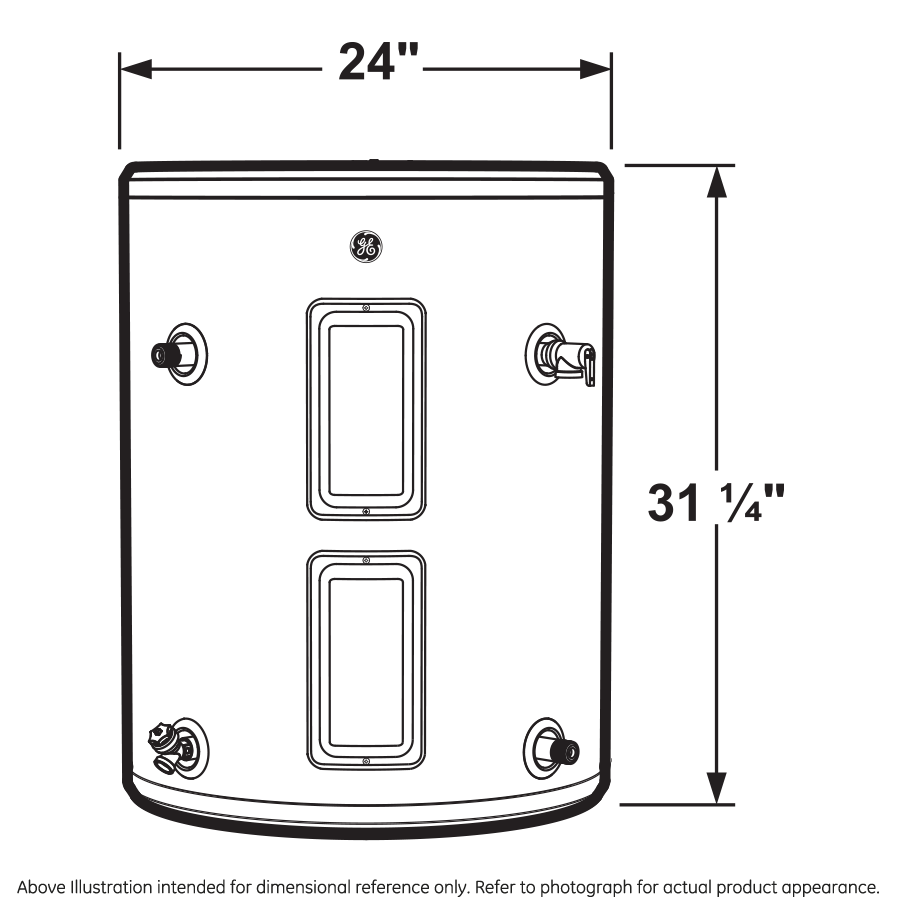

| Overall Width | 24.000000 |
| Overall Height | 31.250000 |
| Product Height (to top of unit) | 31.25 |
| Net Weight | 105 |
| Product Diameter | 24 |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
CAPACITY |
|---|
| Unit Capacity | 28 Gallons |
